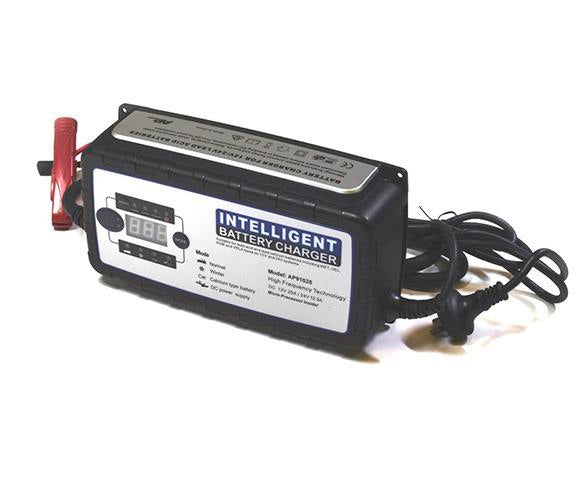

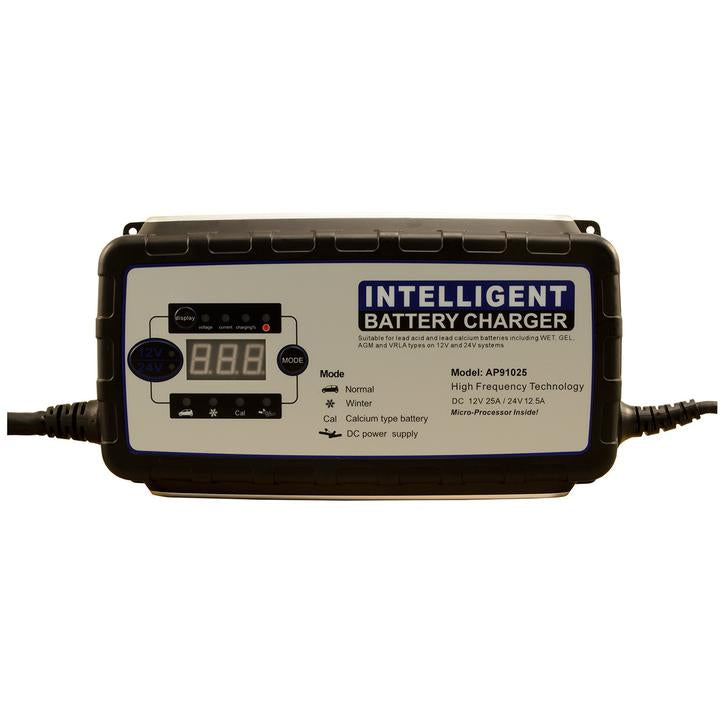

9 Stage Intelligent Battery Charger 25Amp Caravan Motorhome 12\24V
This is a high frequency, switch mode, multi chemistry battery charger. It’s suitable for charging and maintaining all types of 12 volt lead acid batteries including WET, GEL & AMG. With an advanced 9 stage charging process that will recover batteries up to 99.9% of their original charge. It will also automatically detect and recover sulphated batteries extending their life considerably.
BENEFITS
MCU built in, fully automatic from charge to maintenance mode
Charges CALCIUM, WET, GEL, AGM type leadacid batteries

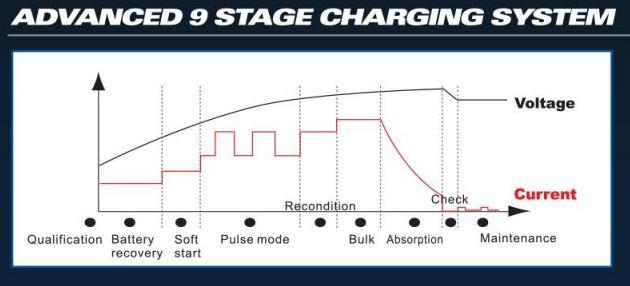

9 stage charge programme, safer and faster
Rescue drained batteries over 2.0V
Returns to last selected mode after power failure
TECHNICAL DATA
INPUTVOLTAGE |
220-240VAC |
INPUT OPERATING VOLTAGE |
170-260VAC, 50/60HZ |
INPUT CURRENT |
2.4A |
EFFICIENCY |
Ø 80% |
AMBIENT TEMPERATURE |
-30c TO + 40c |
COOLING |
Fan |
TYPE OFCHARGE |
9 Steps, Automatically Maintaining |
BATTERY CAPACITY |
12V 75-500AH 24V 45-250AH |
DIMENSION |
390x200x85mm |
HOUSING PROTECTION |
IP20 |
WEIGHT |
2KG |
NOISE LEVEL |
<50db (from 50cm) |
